Tiroler Rohre GmbH

logoDuktilne cevi za umetno zasneževanje

Novost

ZMU Avstrija

Predstavljamo vam naj najsodobnejšo in najbolj odporno zunanjo zaščito s cementnim ovojem po EN15542 za ekstremne pogoje.

Po standardu EN545 Aneks D je zaščita primerna za vse vrste agresivnosti zemljin in tudi za velike mehanske obremenitve, vsebnost kemikalij v zemljini ter tudi zaščita pred blodečimi tokovi.

Nameni uporabe:
Zemljine z velikim faktorjem agresivnosti in vsebnostjo kemikalij kot npr. deponije odpadkov
Na nedostopnih gornatih pobočjih za polaganje brez peščene posteljice (zasutje z izkopnim materialom)
Velike mehanske obremenitve kot npr. pristanišča + Blodeči tokovi kot npr. železnice
Polaganje brez razkopa

Dobavljivo v vseh vrstah spojev:
razstavljiv sidrni spoj VRS-T®
razstavljiv standardni spoj TYT
sidrni (ne razstavljiv) standardni spoj TYT Sit Plus.

Razstavljiv sidrni spoj VRS®-T

  • Izjemna stabilnost pri visokih notranjih pritiskih in zunanjih obremenitvah
  • Obratovalni tlaki do 110 barov
  • Na spoju se lahko lomi do kota 5° (prihraniki pri spojnih / fazonskih kosih)
  • Ni potrebnih betonskih potisnih blokov
  • Hitra in enostavna montaža v vseh vremenskih pogojih
  • Obsežni asortima spojnih / fazonskih kosov
  • Ves asortima na zalogi za hitre dobave na gradbišče (Slovenija / Avstrija)
  • Peščena posteljica pogosto ni potrebna

Montaža razstavljivega spoja VRS-T ® je zelo preprosta in jo nekateri primerjajo kot sestavljanje Lego kock.

Zaščite duktilnih cevi za vodovod

PUR Longlife

  • Pur Longlife: 200g Zn + 120μm poliuretana
  • Pur Longlife Zn/Al: 400g Zn/Al + 120μm poliuretana

Primeri uporabe:

  • Ta tip zaščite duktilnih cevi je primeren za večino primerov. Če obstajajo posebni pogoji kot npr. blodeči tokovi, kemikalije oz. zelo nizka PH vrednost, možnosti zmrzali itd. je potrebno izbrati alternativno zaščito.
    Za tehnični informaciej nas pokličite ali pišite.

ZMU Avstrija

  • 200g Zn + 5mm cementnega ovoja

Primeri uporabe:

  • Zemljine z velikim faktorjem agresivnosti in vsebnostjo kemikalij kot npr. deponije odpadkov
  • Na nedostopnih gornatih pobočjih za polaganje brez peščene posteljice (zasutje z izkopnim materialom)
  • Velike mehanske obremenitve kot npr. pristanišča
  • Polaganje brez razkopa (trenchless installation)

PUR-TOP

  • PUR-TOP: 200g Zn + 400μm poliuretan + PE ovoj

Primeri uporabe:

  • Pri vplivu blodečih tokov (npr. bližina železnice, električnih daljnovodov, večjih ozemljitev) v kombinaciji s plastičnimi zatiči za VRS-T spoj ter dodatnimi PE rokavi za spoj.
    Za več informacij nas prosim pokličite ali pišite.

WKG

  • WKG zunanja namestitev s kovinsko prevleko (npr. mostovi)
  • WKG zakopana namestitev s PE-HD prevleko

Primeri uporabe:

  • Ta tip zaščite je primeren, kjer se pojavi možnost zmrzali vode v cevi. Dodatno ga je možno izvesti z grelnimi nitmi.
    Info: kadar voda zmrzne, se njen volumen poveča za cca. 9%, kar privede do loma / poškodbe duktilne cevi.
    Za več informacij nas prosim pokličite ali pišite.

Katalogi

Prenesi katalog
Prenesi katalog
Prenesi katalog
Prenesi katalog
Prenesi katalog
Prenesi katalog
Prenesi katalog
Prenesi katalog
Prenesi katalog
Prenesi katalog

    Kako pravilno odrezati cev in namestiti varovalni obroč VRS-T

    V primeru ko na duktilni cevi odrežete cev tako, da izgubite navarjen obroč, ki ščiti proti izvlekti, se uporabi patentiran t.i. varovalni obroč. Kako ga pravilno namestiti, si poglejte video.

    Tehnične podrobnosti duktilnih cevi in spojnih elementov / fazonov z VRS®-T Spoj DN 80 - 600

    Duktilne cevi

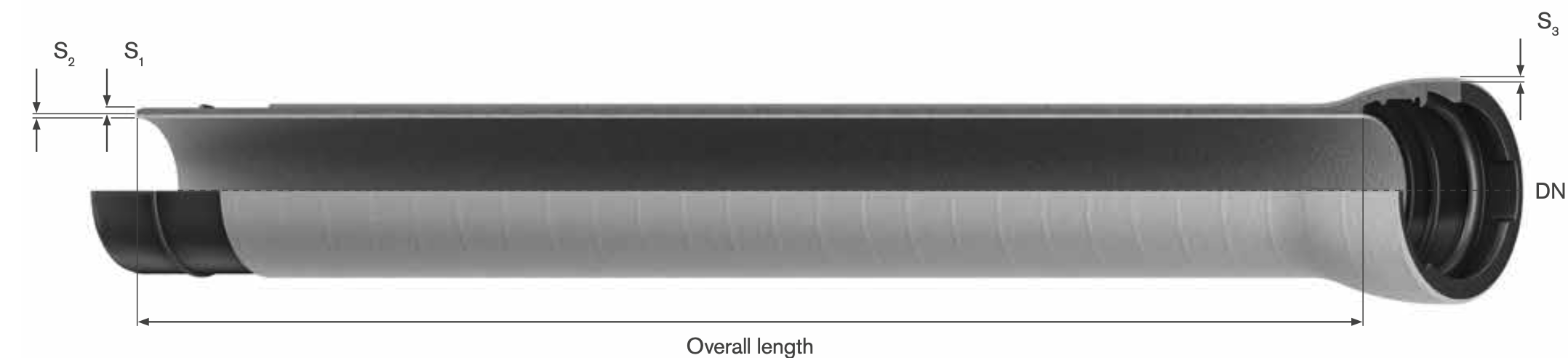

    VRS®-T Pipes DN 80 to DN 600

    Screenshot 2024 09 23 at 20.50.22

    Description  PFA [bar]  Article no.  Dimensions [mm] Weight [kg] Number of locks or set of locks  Allowable tensile forces [kN] acc. to TRM  Max. bending [°]  Min. radius [m]
    s, Iron s, ZMA s, ZMU per meter per 5 m pipe
    MDR DN 80 PN 100 106390001 4.7 4 5 16.3 81.6 2 115 5 57
    MDR DN 100 PN 75 106390002 4.7 4 5 20.0 100.0 2 150 5 57
    MDR DN 100 PN 100 106390003 5.2 5 5 21.4 107.0 2 150 5 57
    MDR DN 125 PN 63 106390004 4.8 4 5 25.6 128.2 2 225 5 57
    MDR DN 125 PN 100 106390005 6.1 4 5 29.1 145.5 2 225 5 57
    MDR DN 150, HDR PN 100 106390006 6.4 4 5 31.5 157.3 2 240 5 57
    MDR DN 150 PN 100 106390007 7.7 4 5 35.9 179.7 2 240 5 57
    MDR DN 200 PN 63 106390008 4.8 4 5 40.9 204.5 3 350 4 72
    MDR DN 200, HDR PN 100 106390009 6.9 4 5 50.5 252.7 3 350 4 72
    MDR DN 200 PN 100 106390010 7.9 5 5 60.1 300.5 3 350 4 72
    MDR DN 250 PN 63 106390011 4.8 4 5 50.8 253.9 3 375 4 72
    MDR DN 250, HDR PN 100 106390012 6.0 4 5 58.1 290.4 3 375 4 72
    MDR DN 250, HDR PN 100 106390075 8.2 4 5 71.3 356.3 3 375 4 72
    MDR DN 300 PN 63 106390013 5.6 5 5 67.9 339.5 4 380 4 72
    MDR DN 300 PN 100 106390014 9.6 5 5 95.1 475.7 4 380 4 72
    MDR DN 300 PN 100 106390015 11.2 5 5 106.3 531.7 4 380 4 72
    MDR DN 400 PN 63 106390016 6.4 5 5 104.0 519.9 4 650 3 95
    MDR DN 400 PN 100 106390077 8.2 5 5 120.4 601.8 4 650 3 95
    MDR DN 400 PN 100 106390017 9.1 5 5 128.5 642.5 4 650 3 95
    MDR DN 400 PN 45 106390029 10.0 5 5 136.6 682.9 4 650 3 95
    MDR DN 500 PN 32 106390050 12.7 5 5 161.3 806.6 4 860 3 95
    MDR DN 500 PN 63 106390051 12.7 5 5 161.3 806.6 4 860 3 95
    MDR DN 500 PN 100 106390018 7.2 5 5 142.4 711.8 4 860 3 95
    MDR DN 500 PN 100 106390028 12.2 5 5 198.7 993.5 4 860 3 95
    MDR DN 600 PN 50 106390029 13.2 5 5 210.4 1,052.1 9 1,525 2 143
    MDR DN 600 PN 32 106390010 8.0 5 5 181.9 909.5 9 1,525 2 143
    MDR DN 600 PN 40 106390026 11.3 5 5 226.6 1,133.0 9 1,525 2 143

    a PFA: allowable operating pressure | PMA = 1.2 x PFA | PEA = 1.2 x PFA + 5 | higher PFA on request | see instructions on the use of clamping rings
    b theoretical mass of 1 m pipe, incl. ZMA, zinc, top coat and socket portion
    c theoretical mass per pipe, incl. ZMA, zinc, top coat and socket portion, an overmold of approx. 10% is to be expected.
    d Tensile forces due to tensile tests by Berliner Wasserbetriebe water company
    e With HDR = high-pressure lock
    f Minimum dimension

    DN Dimensions [mm] Insertion Depth
    t    		 Welded Bead Bevel
    Spigot Diameter
    d1    		 Tolerances Socket Diameter
    D    		 L a b
    80 98 +1.0 | -2.7 156 127 86 ±4 8 ±2 5 +0.5 | -1
    100 118 +1.0 | -2.8 177 135 91 ±4 8 ±2 5 +0.5 | -1
    125 144 +1.0 | -2.8 206 143 96 ±4 8 ±2 5 +0.5 | -1
    150 170 +1.0 | -2.9 232 150 101 ±4 8 ±2 5 +0.5 | -1
    200 222 +1.0 | -3.0 292 160 106 ±4 9 ±2 5.5 +0.5 | -1
    250 274 +1.0 | -3.1 352 165 106 ±4 9 ±2 5.5 +0.5 | -1
    300 326 +1.0 | -3.3 410 170 106 ±4 9 ±2 5.5 +0.5 | -1
    400 429 +1.0 | -3.5 521 190 115 ±5 10 ±2 6 +0.5 | -1
    500 532 +1.0 | -3.8 630 200 120 ±5 10 ±2 6 +0.5 | -1
    600 635 +1.0 | -4.0 732 175 116 +0 | -2 9 ±1 6 +0.5 | -1

    A 2"

    VRS®-T A 2" Fitting
    DN Article no. Dimensions [mm]a PFA [bar] Mass [kg]
    80 106080001 L: 305, L2: 215 100 10.5
    100 106080002 L: 315, L2: 225 100 14.0
    125 106080003 L: 325, L2: 235 100 18.0
    150 106080004 L: 340, L2: 250 100 23.6
    200 106080005 L: 355, L2: 265 100 35.0
    250 106080006 L: 370, L2: 275 100 53.0
    300 106080007 L: 380, L2: 285 851 72.0
    a according to factory standards | B 2597
    1 PFA 100 possible after consultation with our application engineering department.

    P 2"

    VRS®-T P 2" Fitting
    DN Article no. Dimensions [mm]a ød PFA [bar] Mass [kg]
    80 106080234 L1: 86, L: 170 M 12 100 3.6
    100 106080235 L1: 91, L: 175 M 12 100 4.6
    125 106080236 L1: 96, L: 195 M 16 100 6.7
    150 106080237 L1: 101, L: 200 M 16 100 9.0
    200 106080238 L1: 106, L: 210 M 16 100 14.3
    250 106080239 L1: 106, L: 250 M 20 100 27.5
    300 106080240 L1: 106, L: 300 M 20 100 49.5
    80 106080241 Socket plug with 2.5" internal thread 3.6
    a according to factory standards | B 2597

    EU

    VRS®-T EU Fitting

    Dimensions and Mass Table

    DN Dimensions [mm]a Article no. Mass [kg]
    L z PN 10 PN 16 PN 25 PN 40 PN 63 PN 100 PN 10 PN 16 PN 25 PN 40 PN 63 PN 100
    80 130 90 106080020 106080021 106080022 9.7 12.5 15.2
    100 130 90 106080023 106080024 106080025 106080026 12.0 12.7 16.2 20.0
    125 135 95 106080027 106080028 106080029 106080030 16.0 18.2 23.4 26.4
    150 135 95 106080031 106080032 106080033 106080034 20.9 22.1 32.5 32.5
    200 140 100 106089035 106089036 106089037 106089038 106089039 106089040 28.0 30.6 29.0 37.0 50.0 56.6
    250 145 105 106089041 106089042 106089043 106089044 106089045 106089046 39.8 45.0 47.0 50.0 66.2 95.0
    300 150 110 106089047 106089048 106089049 106089050 106089051 106089700 52.0 52.0 53.0 68.0 100.0 120.01
    400 160 120 106080812 106080813 106080814 106080815 106080816 - 84.5 89.0 95.0 137.0 188.0 -
    500 170 130 106080837 106080838 106080839 106080840 106080810 - 130.0 141.0 165.0 178.01 241.5 -
    600 180 140 106026119 106025457 106028346 106024611 - - 104.0 104.0 104.0 184.01 - -

    a According to EN 545 | B 2597 | EN 1092-2 | factory standards

    1 Note the PFA of the VRS-T joint.

    F

    VRS®-T F Fitting
    DN Dimensions [mm]a Article no. Mass [kg]
    L PN 10 PN 16 PN 25 PN 40 PN 63 PN 100 PN 10 PN 16 PN 25 PN 40 PN 63 PN 100
    80 350 106080052 106070003 106080054 7.6 10.4 12.4
    100 360 106080055 106080056 106080057 106080058 9.8 10.9 15.5 17.9
    125 370 106080059 106080060 106080061 106080062 14.1 16.7 22.5 26.2
    150 380 106080063 106080064 106080065 106080066 19.6 23.1 32.5 36.0
    200 400 106089067 106089068 106089069 106089070 106089071 106089072 28.5 29.4 24.5 29.3 51.5 57.5
    250 420 106089073 106089074 106080075 106080076 106080077 - 37.0 42.5 36.0 55.7 70.5 -
    300 440 106089078 106089079 106089080 106089081 - - 46.5 58.3 47.5 62.0 - -
    400 480 106080817 106080818 106080819 - - - 74.5 79.5 84.0 - - -
    500 520 106070258 106028407 106070307 - - - 146.0 146.0 155.0 - - -
    600 560 106026118 106028008 106028347 - - - 135.0 135.0 - - - -

    a According to EN 545 | B 2597 | EN 1092-2 | factory standards

    GDR (vmesni kos)

    VRS®-T GDR Fitting
    DN Article no. Dimensions [mm]a
    L    		 PFA [bar] Mass [kg]
    80 106089083 400 100 6.5
    100 106089085 400 100 9.5
    125 106089088 400 100 12.1
    150 106089090 400 100 15.3
    200 106089092 400 100 22.8
    80 106089084 800 100 13.9
    100 106080086 800 100 18.5
    125 106080087 800 100 20.5
    150 106080089 800 100 32.5
    200 106080091 800 100 43.6
    250 106080260 800 100 55.5
    300 106080261 800 100 84.0
    400 106080255 800 40 79.0
    400 106080258 800 63 105.0
    500 106080256 800 30 104.0
    500 106000319 800 50 150.0
    600c 106000195 1000 32 1,118.4

    a According to factory standards | B 2597

    b Internal lining: cement-mortar lining according to ÖNORM B 2562

    c Special component, length K9 1000 mm

    U (kratki)

    VRS®-T U Fitting short
    DN Article no. Dimensions [mm]a PFA [bar] Mass [kg]
    L B
    80 106080650 161 415 100 12.5
    100 106080651 160 430 100 17.0
    125 106080652 174 460 100 22.5
    150 106080653 180 480 100 30.5
    200 106080654 180 500 100 42.5
    250 106080655 190 520 100 65.0
    300 106089656 200 540 851 96.0
    400b 106080174 340 720 63 175.0
    500b 106081175 390 720 50 258.3

    a According to EN 545 | B 2597 | factory standards

    1 PFA 100 possible after consultation with our application engineering department.

    b High pressure socket

    U (dolgi)

    VRS®-T U Fitting long
    DN Article no. Dimensions [mm]a PFA [bar] Mass [kg]
    L B
    150 106080846 600 900 100 46.0
    200 106080847 580 900 100 78.0
    250 106080848 570 900 100 110.0

    a According to factory standards | B 2597

    MK 11°

    VRS®-T MK Fitting 11°
    DN Article no. Dimensions [mm]a PFA [bar] Mass [kg]
    L L1
    80 106080099 185 40 100 8.5
    100 106080103 195 40 100 11.8
    125 106080107 215 50 100 16.0
    150 106089111 230 55 100 20.5
    200 106089115 255 65 100 33.5
    250 106089119 275 75 100 55.0
    300 106089123 300 85 851 80.0
    400 106080822 420 110 63 138.8
    500 106080804 460 130 50 222.0
    600 106017328 459 157 50 216.0

    a According to EN 545 | B 2597 | factory standards

    1 PFA 100 possible after consultation with our application engineering department.

    MK 22°

    VRS®-T MK Fitting 22°
    DN Article no. Dimensions [mm]a PFA [bar] Mass [kg]
    L L1
    80 106080099 185 40 100 8.5
    100 106080103 195 40 100 11.8
    125 106080107 215 50 100 16.0
    150 106089111 230 55 100 20.5
    200 106089115 255 65 100 33.5
    250 106089119 275 75 100 55.0
    300 106089123 300 85 851 80.0
    400 106080822 420 110 63 138.8
    500 106080804 460 130 50 222.0
    600 106017328 459 157 50 216.0

    a According to EN 545 | B 2597 | factory standards

    1 PFA 100 possible after consultation with our application engineering department.

    MK 30°

    VRS®-T MK Fitting 30°
    DN Article no. Dimensions [mm]a PFA [bar] Mass [kg]
    L L1
    80 106080100 190 45 100 8.5
    100 106080104 205 50 100 12.1
    125 106080108 220 55 100 16.2
    150 106089112 240 65 100 21.8
    200 106089116 270 80 100 35.5
    250 106089120 295 95 100 55.8
    300 106089124 320 110 851 84.0
    400 106080823 450 140 63 135.0
    500 106080805 495 170 50 224.0
    600 106017331 501 199 50 264.0

    a According to EN 545 | B 2597 | factory standards

    1 PFA 100 possible after consultation with our application engineering department.

    MK 45°

    VRS®-T MK Fitting 45°
    DN Article no. Dimensions [mm]a PFA [bar] Mass [kg]
    L L1
    80 106080101 200 55 100 9.0
    100 106080105 220 65 100 12.6
    125 106080109 240 75 100 17.5
    150 106089113 260 85 100 23.8
    200 106089117 300 110 100 38.0
    250 106089121 335 130 100 64.0
    300 106089125 365 150 851 86.0
    400 106080850 505 195 63 162.5
    500 106080851 567 245 50 258.0

    a According to EN 545 | B 2597 | factory standards

    1 PFA 100 possible after consultation with our application engineering department.

    MMK 11°

    VRS®-T MMK Fitting 11°
    DN Article no. Dimensions [mm]a
    L    		 PFA [bar] Mass [kg]
    80 106080186 300 100 10.0
    100 106080190 300 100 14.3
    125 106080194 350 100 20.2
    150 106089198 350 100 22.5
    200 106089202 400 100 36.8
    250 106089206 500 100 53.0
    300 106089210 550 851 69.4
    400 106080831 650 30 116.0
    500 106025095 750 30 170.0
    600 106026120 850 32 127.0

    a According to EN 545 | B 2597 | factory standards

    1 PFA 100 possible after consultation with our application engineering department.

    MMK 22°

    VRS®-T MMK Fitting 22°
    DN Article no. Dimensions [mm]a
    L    		 PFA [bar] Mass [kg]
    80 106080187 400 100 11.3
    100 106080191 400 100 14.6
    125 106080195 500 100 20.8
    150 106089199 500 100 23.6
    200 106089203 600 100 38.6
    250 106089207 750 100 56.7
    300 106089211 850 851 75.6
    400 106080832 1100 30 125.5
    500 106029152 1300 30 197.8
    600 106026121 1500 32 141.0

    a According to EN 545 | B 2597 | factory standards

    1 PFA 100 possible after consultation with our application engineering department.

    MMK 30°

    VRS®-T MMK Fitting 30°
    DN Article no. Dimensions [mm]a
    L    		 PFA [bar] Mass [kg]
    80 106080188 45 100 10.3
    100 106080192 50 100 14.8
    125 106080196 55 100 21.0
    150 106089200 65 100 24.3
    200 106089204 80 100 41.3
    250 106089208 95 100 57.0
    300 106089212 110 851 77.8
    400 106080833 140 30 137.0
    500 106025362 170 30 205.0
    600 106026122 200 32 225.0

    a According to EN 545 | B 2597 | factory standards

    1 PFA 100 possible after consultation with our application engineering department.

    MMK 45°

    VRS®-T MMK Fitting 45°
    DN Article no. Dimensions [mm]a
    L    		 PFA [bar] Mass [kg]
    80 106080189 55 100 11.4
    100 106089193 65 100 14.5
    125 106080197 75 100 22.0
    150 106089201 85 100 25.8
    200 106089205 110 100 41.3
    250 106089209 130 100 64.6
    300 106089213 150 851 84.5
    400 106080834 195 30 149.5
    500 106029150 240 30 234.0
    600 106026141 285 32 268.0

    a According to EN 545 | B 2597 | factory standards

    1 PFA 100 possible after consultation with our application engineering department.

    MMQ 90°

    VRS®-T MMQ Fitting 90°
    DN Article no. Dimensions [mm]a
    L    		 PFA [bar] Mass [kg]
    80 106080214 100 100 11.3
    100 106080215 120 100 16.7
    125 106080216 145 100 24.8
    150 106089217 170 100 30.5
    200 106089218 220 100 53.4
    250 106089219 270 100 78.0
    300 106089220 320 851 89.0
    400 106029194 430 30 180.0

    a According to EN 545 | B 2597 | factory standards

    1 PFA 100 possible after consultation with our application engineering department.

    MB

    VRS®-T MB Fitting
    DN 1 DN 2 Article no. Dimensions [mm]a
    L    		 L1 PFA [bar] Mass [kg]
    80 80 106080677 322 85 100 20.0
    100 80 106080678 351 95 100 24.0
    125 80 106080679 393 112.5 100 31.0
    150 80 106080680 434 128 100 39.0
    200 80 106080681 511 157.5 100 58.0
    250 80 106080682 460 117.5 100 68.0
    300 80 106080683 466 117.5 851 93.0
    400b 80 106081097 680 220 63 184.0
    400b 150 106081229 680 220 63 200.0
    400b 300 106081230 680 220 63 211.5
    500b 150 106081177 740 230 50 253.0
    500b 300 106081178 740 230 50 275.0
    600b 200 106080990 668 218 55 268.0

    a According to EN 545 | B 2597 | factory standards

    b High pressure socket

    1 PFA 100 possible after consultation with our application engineering department.

    MMB

    VRS®-T MMB Fitting
    DN 1 DN 2 Article no. Dimensions [mm]a
    L    		 H PFA [bar] Mass [kg]
    80 80 106080159 170 85 100 16.9
    100 80 106080160 170 95 100 20.2
    100 100 106080161 190 95 100 23.2
    125 80 106080162 170 105 100 25.4
    125 100 106080163 195 110 100 27.2
    125 125 106080164 225 110 100 31.3
    150 80 106080165 170 120 100 32.7
    150 100 106080166 195 120 100 36.3
    150 125 106080167 255 125 100 41.0
    150 150 106089168 255 125 100 39.8
    200 80 106089169 175 145 100 47.6
    200 100 106089170 200 145 100 47.5
    200 125 106080171 255 145 100 58.0
    200 150 106089172 255 150 100 54.2
    200 200 106089173 315 155 100 63.4
    250 80 106089174 180 170 100 72.0
    250 100 106089175 200 170 100 62.4
    250 125 106089176 230 175 100 72.0
    250 150 106089177 260 175 100 75.0
    250 200 106089178 315 180 100 77.0
    250 250 106089179 375 190 100 89.0
    300 80 106089180 180 195 851 97.0
    300 100 106089181 205 195 851 82.0
    300 150 106089182 260 200 851 87.2
    300 200 106089183 320 205 851 95.8
    300 250 106089184 375 210 851 109.0
    300 300 106089185 435 220 851 140.0
    400 400 106025626 560 280 30 170.0
    500 500 106089701 680 350 30 427.0

    a According to EN 545 | B 2597 | factory standards

    1 PFA 100 possible after consultation with our application engineering department.

    MMA

    VRS®-T MMA Fitting
    DN 1 DN 2 Dimensions [mm]a Article no. Mass [kg]
    L B PN 10 PN 16 PN 25 PN 40 PN 10 PN 16 PN 25 PN 40
    80 50 170 160 106080126 15.2
    80 80 170 165 106080127 16.0
    100 50 170 170 106080128 19.4
    100 80 170 175 106080129 20.0
    100 100 190 180 106080130 - - 22.3 - -
    125 80 170 190 106080131 25.8
    125 100 195 195 106080132 - - 27.5 - -
    125 125 225 200 106070194 - - 28.0 - -
    150 80 170 205 106089134 30.6
    150 100 195 210 106089135 - - 33.0 - -
    150 150 255 220 106089137 - - 39.6 - -
    200 80 175 235 106089138 45.4
    200 100 200 240 106089139 - - 46.8 - -
    200 150 255 250 106089141 - - 51.6 - -
    200 200 315 260 106089143 - - 57.0 - -
    250 80 180 265 106089144 62.0
    250 100 200 270 106089145 - - 57.5 - -
    250 150 260 280 106089146 - - 70.0 - -
    250 200 315 290 106070130 106089148 - - 76.0 76.0 - -
    250 250 375 300 106089149 - - - 85.0 - - -
    300 80 180 295 106089151 76.6
    300 100 205 300 106089152 106080811 81.2 82.6
    300 150 260 310 106089153 106070199 - 80.0 81.0 -
    300 200 320 320 106070200 - - - 94.4 - - -
    300 300 435 340 106089157 106089158 - - 111.8 111.8 - -
    400 150 270 370 106080824 ‭106080825 ‭106080826‬ 147.0 152.0 145.5
    400 200 325 380 106080827 106080828 106080829 - 164.0 164.0 170 -
    400 300 440 400 106080830 - - - 170.0 - - -
    400 400 560 420 106021934 106026835 106026836 - 207.0 249.0 249.0 -
    500 200 330 440 106028212 104175201 106026065 - 140.0 140.0 130.0 -
    500 300 450 460 106028213 106029897 - - 205.0 205.0 - -
    500 400 565 480 106028007 - - - 198.0 - - -
    500 500 580 500 106025495 106027032 - 106026421 315.0 357.0 - 345.0
    600 150 570 490 106028214 - - 230.0 - -
    600 200 340 500 106028215 - 106028661 - 240.0 - 240.0 -
    600 300 570 520 - 106028713 - - - 266.0 - -
    600 400 570 540 106028217 - - - 310.0 - - -
    600 600 800 580 106026145 106028131 - - 376.5 393.0 - -

    MMR

    VRS®-T MMR Fitting
    DN 1 DN 2 Article no. Dimensions [mm]a PFA [bar] Mass [kg]
    100 80 106080221 90 100 11.9
    125 80 106080222 140 100 16.0
    125 100 106080223 100 100 17.2
    150 80 106080224 190 100 19.0
    150 100 106080225 150 100 21.0
    150 125 106080226 100 100 20.8
    200 100 106080227 250 100 29.6
    200 150 106080228 150 100 30.0
    250 150 106080229 250 100 44.2
    250 200 106080230 150 100 45.8
    300 150 106080231 350 851 53.0
    300 200 106080232 250 851 59.0
    300 250 106080233 150 851 62.8
    400b 300 106081227 260 63 130.0
    500b 400 106081228 260 50 205.0
    a according to EN 545 | B 2597 | factory standards
    1 PFA 100 possible after consultation with our application engineering department.
    b high pressure socket

    P EN

    VRS®-T P EN Fitting
    DN Dimensions [mm]a Article no. Mass [kg]
    B C H B1 PN 10 PN 16 PN 25 PN 40 PN 10 PN 16 PN 25 PN 40
    80 165 145 110 180 106080008 16.6
    100 180 158 125 200 106080010 - 21.7 - -
    a according to EN 545 | B 2597 | EN 1092-2 | factory standards
